Tenoner & Mortiser
TEN-120B / TEN-152B

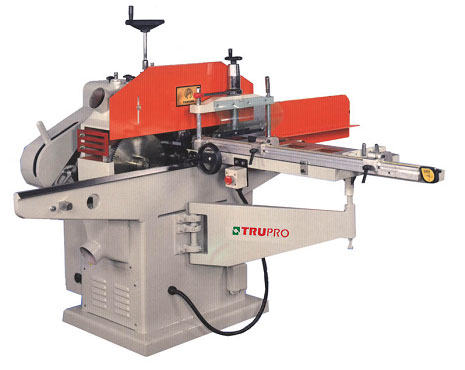

Single End Tenoner
- Both ST-120B and ST-152B tenoners are similar to ST-120A and ST-152A respectively, but with a difference in features of cope spindle.

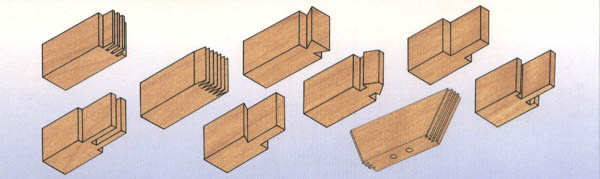

- Suited for cutting tenons for window and door frames, and cutting general joint tenons.
- Cope spindle is driven by pulley providing 6000 RPM, allowing for a faster spindle shaper function.
- Cope spindle accepts general shaper cutters.
FEATURES: -
TENON HEAD:
Both top and bottom tenon heads can be individually or simultaneously vertically adjusted.
Individual cross adjustment in 1” distance. Each tenon head fitted with 2 H.S.S knives. -

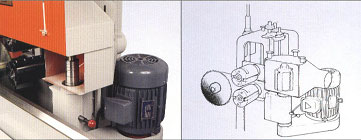

COPE HEAD:
For fitting with pattern cutter producing various end patterns. Cope spindle may be vertically or crosswise adjusted. -
CUT OFF SAW:
The saw mechanism is mounted in front of tenon heads for cutting stock to the desired length. Sawblade may be vertically adjusted. Saw head accepts 12” maximum blade diameter. -
SLIDING TABLE
Table slides on precision machined “v” ways, precise sliding accuracy is assured. The bearing support permits for effortless hand moving of table. -
EXTENDABLE ALUMINUM RULER
Equipped with two work stops for convenient repetitive cutting.
Model TEN-120B TEN-152B Maximum tenon cut Length 120 mm 152 mm width 370 mm 370 mm Thickness 112 mm 127 mm Max. tenoning cutterhead size Ø105 mm(dia.)
120 mm(long)Ø110 mm(dia.)
152 mm(long)Max. shaping cutter size Ø6-3/8" Ø6-3/8" Max. sawblade diameter Ø12" Ø12" Spindle diameter Tenon spindle Ø1" Ø1-1/4" Cope spindle Ø1-1/4" or 30 mm Ø1-1/4" or 30 mm Saw spindle Ø1" Ø1-1/4" Spindle speed Tenon spindle 3400 RPM 3400 RPM Cope spindle 6000 RPM 6000 RPM Saw spindle 2800 RPM 2800 RPM Motor(HP) Saw & tenon 3 HP 5 HP Cope head 5 HP 5 HP Sliding table area 1280×450 mm 1280×450 mm N.W 500 kgs 600 kgs G.W 670 kgs 720 kgs Machine dimensions 1680×1840×1150 mm 1680×1840×1150 mm Packing dimensions 1700×780×1400 mm 1700×780×1400 mm
