Tenoner & Mortiser

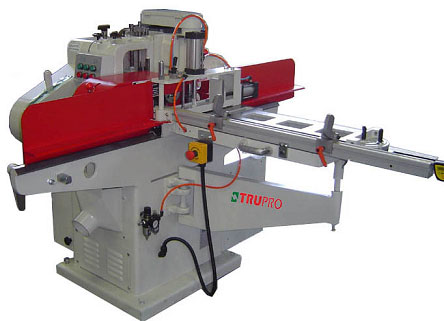

TEN-152C
Single End Tenoner
Features: -
TENON HEAD:
Both top and bottom tenon heads can be individually or simultaneously vertically adjusted.
Spiral head with 14×14×2.0mm×6pcs tips on the end of each spiral head(optional) -
COPE HEAD:
For fitting with pattern cutter producing various end patterns. Cope spindle may be vertically or crosswise adjusted. -
CUT OFF SAW:
The saw mechanism is mounted in front of tenon heads for cutting stock to the desired length. Sawblade may be vertically adjusted. Saw head accepts 12" maximum blade diameter. -
SLIDING TABLE
Table slides on precision machined "v" ways, precise sliding accuracy is assured. The bearing support permits for effortless hand moving of table. -
EXTENDABLE ALUMINUM RULER
Equipped with two work stops for convenient repetitive cutting.
-
TENON HEAD:
Model TEN-152C Maximum tenon cut Length 152 mm width 370 mm Thickness 127 mm Max. tenoning cutterhead size Ø110 mm(dia.)
152 mm(long)Max. shaping cutter size Ø10" Max. sawblade diameter Ø12" Spindle diameter Tenon spindle Ø1-1/4" Cope spindle Ø1-1/4" Saw spindle Ø1-1/4" Spindle speed Tenon spindle 3400 RPM Cope spindle 6000 RPM Saw blade 2800 RPM Motor(HP) Saw & tenon 5 HP Cope head 3 HP Sliding table area 1280×450 mm N.W 530 kgs G.W 6500 kgs Machine dimensions 1680×1840×1150 mm Packing dimensions 1700×780×1400 mm
