Tenoner & Mortiser

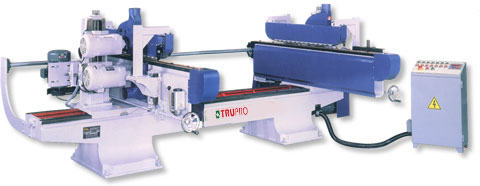

TEN-46A / TEN-66A / TEN-86A
Automatic Double Ended Mortising Machine

  •
    Thickness of cut at both ends can be set as desired. Centralized control panel has a digital controller for thickness cut control. Automatic lubrication for chain and rail. Variable feed speed can be set as desired.
    FEATURES:
    • The machine is constructed of upper and lower circular sawblades and followed with molding spindles at both ends. Designed for performing burr-free cutting and molding at both ends in a single pass.
    • Specially designed circulated chain feed system greatly upgrades machining efficiency.
    • Japan-imported chain features high quality, maximum wear resistance and long service life.
    • Plastic steel chain blocks assure maximum wear resistance and maximum feed smoothness.
    • Separately mounted control box provides added operational convenience.
    • Synchronized feed at both ends ensures outstanding molding accuracy.
    • A digital controller provided on the control panel for operational convenience and high accuracy of cutting length.
    • Feed chain and rail employ automatic lubrication system.
    • Variable feed speed makes the machine ideal for cutting various soft and hard wood materials.




  • Model TEN-46A TEN-66A TEN-86A
    Processing Length 300-1200mm 300-1800mm 300-2400mm
    Loading Speed 1HP (1~15m/Minute)
    Circular Sawing Blade(special accessory) 250mm(10")
    Inclined angle of circular sawing blade 45°
    Turning speed of circular sawing blade 3300~3650R.P.M, 50~60Hz
    No. of rails 2 set
    Motor of circular sawing blade 2HP x 4
    Vertical shaft motor 3HP x 2
    Diameter of vertical shaft Ø30mm (Standard specification)
    Turning speed vertical shaft 6600~7200R.P.M, 50~60Hz
    N.W / G.W 1250/1500kg 1700/2000kg 2100/2500kg
    Machine size (mm)(LxWxH) 2400x2200x1400 2980x2200x1400 3580x2200x1400
    Shipping size(mm)(LxWxH) 2350x2300x1625 3100x2300x1625 3700x2300x1625
