Tenoner & Mortiser
DET-46A / DET-66A / DET-86A

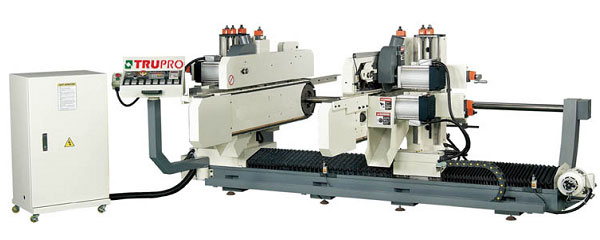

Double End Tenoner
FEATURES:
- t could deal properly with all kinds of furniture, such as solid wood products and panel furniture. Not only for cutting prefer size for double sides of panel, profile moulding and sanding, but also making the angular or tongue & groove according to your demand. All fully automatic functions can provide the most efficient capacities.
Model DET-46A DET-66A DET-86A MAX. WORKING WIDTH (mm) 1250 1850 2450 MIN. WORKING WIDTH (mm) 210 (100) 210 (100) 210 (100) MAX. WORKING THICKNESS(mm) 50 50 50 WORKING UNITS (pcs) 6 6 6 SCORING SAW UNIT MOTOR HORSE POWER (HP) 2 (3/5) 2 (3/5) 2 (3/5) SPINDLE SPEED (rpm) 3450 / 60HZ 3450 / 60HZ 3450 / 60HZ SPINDLE DIMENSION (mm) 25.4 25.4 25.4 SAWBLADE DIMENSION (mm) 120-205 120-205 120-205 MAIN SAW UNIT MOTOR HORSE POWER (HP) 5 (7.5) 5 (7.5) 5 (7.5) SPINDLE SPEED (rpm) 3450 / 60HZ 3450 / 60HZ 3450 / 60HZ SPINDLE DIMENSION (mm) 25.4 25.4 25.4 SAWBLADE DIMENSION (mm) 255 255 255 MOULDING SYSTEM MOTOR HORSE POWER (HP) 5 (7.5) 5 (7.5) 5 (7.5) SPINDLE SPEED (rpm) 3000 / 8000 3000 / 8000 3000 / 8000 SPINDLE DIMENSION (mm) 40 40 40 CUTTER DIMENSION (mm) 180-210 180-210 180-210 CHAIN TRACK SYSTEM MOTOR HORSE POWER (HP) 2 2 2 FEED SPEED (M/min) 6-20 6-20 6-20 DISTANCE BETWEEN DOGS(mm) 400 (300/200) 400 (300/200) 400 (300/200) MOVABLE SIDE SHIFTING SYSTEM MOTOR HORSE POWER (HP) 1 1 1 FEED SPEED (M/min) 2 2 2 N.W. (kgs) 3150 2950 2850 G.W. (kgs) 3450 3350 3250 MACHINE DIMENSION ( L x W x H ) (mm) 4200X2660X1400 3600X2660X1400 3000X2660X1400 PACKING DIMENSION ( L x W x H ) (mm) 4400X2550X1700 3800X2250X1700 3200X2250X1700
