Tenoner & Mortiser

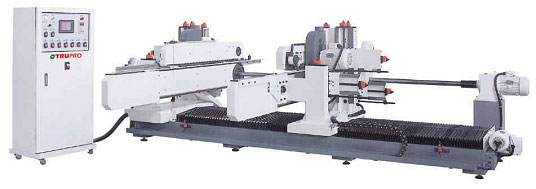

DET-86S / DET-66S / DET-46S
6-Spindle Available Double End Tenoner
Main saw
Scoring saw
1st Moulding unit
2ND Moulding unit
Model DET-86S DET-66S DET-46S Max. working width 2600mm 2000mm 1300mm Min. working width 210mm 210mm 210mm Max. working thickness 120mm 120mm 120mm Working units 6pcs 6pcs 6pcs Chaintrack system Motor horse power 2HP 2HP 2HP Feed speed 6-25 M/min 6-25 M/min 6-25 M/min Distance between dogs 400 (200)mm 400 (200)mm 400 (200)mm Movable side shifting system Motor horse power 1HP 1HP 1HP Feed speed 2 M/min 2 M/min 2 M/min Net weight / Gross weight 4350/5000kg 3900/4750kg 3500/4200kg Machine size (mm) 4720x4340x1470 4120x4340x1470 3400x4340x1470 Packing size (mm) 4720x2250x1850 4120x2250x1850 3520x2250x1800 Options:
- Safety cabinet
- Central supporter
- Central supporter with pressure beam supporter
- Automatic feeding magazine
- Strengthened track
- Positioning knife for moulding unit
- Top & bottom fences for working units
- Extra dogs * distance from 400mm to 200mm
- Manual lubrication device for movable stand
- Automatic lubrication device for movable stand
- Enlarged motors
- CE standard
- Dust conveyor
- Chopping saw for the main saw
