Tenoner & Mortiser

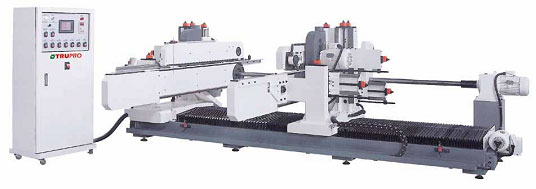

DET-88S / DET-68S / DET-48S
8-Spindle Available Double End Tenoner
Main saw
Scoring saw
1st Moulding unit
2ND Moulding unit
Model DET-88S DET-68S DET-48S Max. working width 2600mm 2000mm 1300mm Min. working width 210mm 210mm 210mm Max. working thickness 120mm 120mm 120mm Working units 8pcs 8pcs 8pcs Chaintrack system Motor horse power 3HP 3HP 3HP Feed speed 6-25 M/min 6-25 M/min 6-25 M/min Distance between dogs 400 (200)mm 400 (200)mm 400 (200)mm Movable side shifting system Motor horse power 1HP 1HP 1HP Feed speed 2 M/min 2 M/min 2 M/min Net weight / Gross weight 4600/5350kg 4200/5000kg 3800/4500kg Machine size (mm) 4720x4985x1470 4120x4985x1470 3400x4985x1470 Packing size (mm) 4850x2270x1800 4730x2270x1800 3550x2270x1800 Options:
- Safety cabinet
- Central supporter
- Central supporter with pressure beam supporter
- Automatic feeding magazine
- Strengthened track
- Positioning knife for moulding unit
- Top & bottom fences for working units
- Extra dogs * distance from 400mm to 200mm
- Manual lubrication device for movable stand
- Automatic lubrication device for movable stand
- Enlarged motors
- CE standard
- Dust conveyor
- Chopping saw for the main saw
