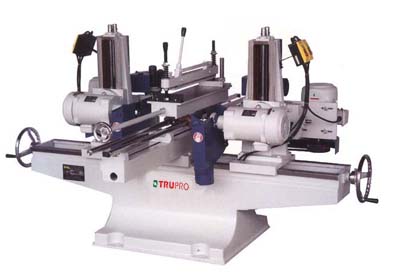

Tenoner & Mortiser
TEN-424R / TEN-624RT / TEN-824RT
Double Ended Circular Saw With Vertical Shaft Machine
Features:
- Sawblades and molder cutters are equipped at both ends providing trimming, size cutting, molding and tenoning operations-all quickly done in a single pass.
- Standard models provide 4~8 feet length capacity to choose from, a custom model with over 8 feet capacity is available.
- Sawblades, cutting tools, and manually operated air clamp cylinder are optional equipment.
- Two rails configuration for models with over 4 feet cutting length increases cutting stability and accuracy.
Model TEN-424R TEN-624RT TEN-824RT Processing Length 250-1220mm 500-1850mm 500-2440mm Processing Width 580mm Sawblade diameter(optional) 10"-14"(Ø25.4mm) Tilting degree of sawblade and moulding spindle 360° Turning speed of circular sawing blade 3300~3650R.P.M, 50~60Hz No. of rails 1 set 2 set 2 set Motor of circular sawing blade 2HP x 2 Vertical shaft motor 3HP x 2 Diameter of vertical shaft Ø30mm (Standard specification) Turning speed vertical shaft 6600~7200R.P.M, 50~60Hz N.W / G.W 700/850kg 950/1150kg 1100/1300kg Machine size (LxWxH) 2230x1920x1200mm 2950x1920x1200mm 3450x1920x1200mm Shipping size (LxWxH) 2060x1120x1400mm 2820x1100x1400mm 3500x1100x1400mm
