Tenoner & Mortiser
TEN-424AR / TEN-624ART / TEN-824ART
Double Ended Circular Saw With Vertical Shaft Machine
Features:

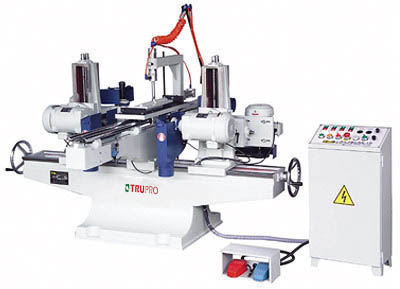

- The picture shown is an automatic model.
- Sawblades and molder cutters are equipped at both ends providing trimming, size cutting, molding and tenoning operations – all quickly done in a single pass.
- Standard models provide 3 ~ 8 feet length capacity to choose from. A custom model with over 8 feet capacity is available.
- Separately mounted control box allows for moving into any position as desired.
- Foot switch facilitates operational control. Feed speed is micrometrically adjusted.
- Sawblades, cutting tools, automatic workpiece outfeed and manually operated air clamp cylinder are optional equipment.
- Two rails configuration for models with over 4 feet cutting length increases cutting stability and accuracy.
Model TEN-424AR TEN-624ART TEN-824ART Processing Length 300-1200mm 300-1800mm 300-2400mm Processing Width 580mm Sawblade diameter(optional) 10"-14"(Ø25.4mm) Tilting degree of sawblade and moulding spindle 360° Turning speed of circular sawing blade 3300~3650R.P.M, 50~60Hz No. of rails 1 set 2 set 2 set Motor of circular sawing blade 2HP x 2 Vertical shaft motor 3HP x 2 Diameter of vertical shaft Ø30mm (Standard specification) Turning speed vertical shaft 6600~7200R.P.M, 50~60Hz N.W / G.W 700/850kg 950/1150kg 1100/1300kg Machine size (LxWxH) 2230x1920x1200mm 2950x1920x1200mm 3450x1920x1200mm Shipping size (LxWxH) 2060x1120x1400mm 2820x1100x1400mm 3500x1100x1400mm
