Tenoner & Mortiser
TEN-426AR / TEN-626ART / TEN-826ART / TEN-424ARC / TEN-624ARCT / TEN-824ARCT
Double Ended Upper & Lower Circular Saw With Vertical Shaft Machine
Features:

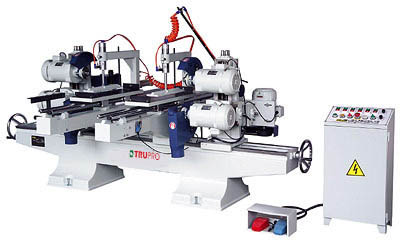

- The picture shown is an automatic model with molding spindle.
- Each end is equipped with upper and lower sawblades, providing trimming and size cutting function with burr-free effect.
- Upper and lower sawblades and molder cutters are equipped at both ends, providing cutting off, trimming and molding operations quickly and efficiently in a single pass.
- Sawblades, cutting tools and automatic workpiece outfeed are optional equipment.
- Single rail configuration for models with 3 feet and 4 feet cutting length.
- Two rails configuration for models with over 4 feet cutting length increases cutting stability and accuracy.
- Standard models provide 3 ~ 8 feet length capacity to choose from. A custom model with over 8 feet capacity is available.
- Separately mounted control box allows for moving into any position as desired.
- When requested, a manually-controlled air clamp is available for operational convenience.
MODEL(with vertical shaft) TEN-426AR TEN-626ART TEN-826ART MODEL(without vertical shaft) TEN-424ARC TEN-624ARCT TEN-824ARCT Processing Length 250-1220mm 500-1830mm 500-2440mm Processing Width 580mm Sawblade diameter(optional) 10"-14"(Ø25.4mm) Tilting degree of sawblade and moulding spindle 360° Turning speed of circular sawing blade 3300~3650R.P.M, 50~60Hz No. of rails 1 set 2 set 2 set Motor of circular sawing blade 2HP x 4 Vertical shaft motor 3HP x 2 Diameter of vertical shaft Ø30mm (Standard specification) Turning speed vertical shaft 6600~7200R.P.M, 50~60Hz N.W / G.W 820/970kg 1070/1270kg 1220/1420kg Machine size (LxWxH) 2230x1920x1200mm 2950x2200x1200mm 3450x2200x1200mm Shipping size (LxWxH) 2150x1120x1400mm 2820x1120x1400mm 3520x1120x1400mm
