Tenoner & Mortiser

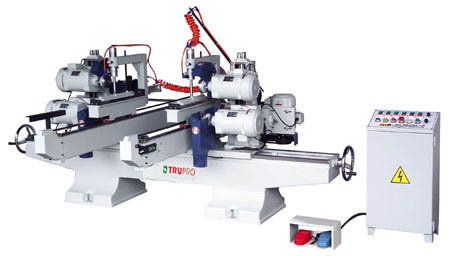

TEN-426AST / TEN-626AST / TEN-826AST
Double Ended Upper & Lower Circular Saw With Vertical Shaft Machine
Features:
- Upper and lower sawblades and molder cutter are equipped at both ends. Especially ideal for parquet cutting off, cutting to size and molding operations.
- Automatic operation provides maximum operational convenience and high productivity.
- Two rails configuration. Slideways are equipped with precision linear motion guides. Synchronized feed motion for both ends assures high cutting accuracy.
- Sawblades and cutting tools are optional equipment.
- Separately mounted control box allows for moving into any position as desired.
MODEL(with vertical shaft) TEN-426AST TEN-626AST TEN-826AST Processing Length 280-1200mm 280-1850mm 280-2440mm Processing Width 580mm Sawblade diameter(optional) 10"-14"(Ø25.4mm) Tilting degree of sawblade and moulding spindle 360° Turning speed of circular sawing blade 3300~3650R.P.M, 50~60Hz No. of rails 2 set 2 set 2 set Motor of circular sawing blade 2HP x 4 Vertical shaft motor 3HP x 2 Outfeed motor 1/4HP Diameter of vertical shaft Ø30mm (Standard specification) Turning speed vertical shaft 6600~7200R.P.M, 50~60Hz N.W / G.W 1000/1170kg 1120/1300kg 1070/1270kg Machine size (LxWxH) 2230x2200x1200mm 2950x2200x1200mm 2950x2200x1200mm Shipping size (LxWxH) 2150x2275x1550mm 2820x2275x1550mm 2820x1120x1400mm
