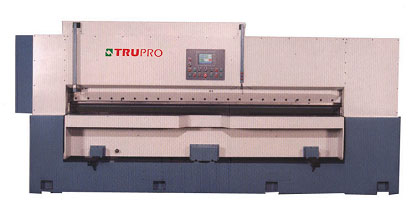

VNR-D3200 / VNR-D3600
Double Knife Veneer Cutting Machine
FEATURES:
- The highly intensified welded steel plates casing of the machine makes the exact cutting highly stable.
- The hydraulic operation system assures exact cutting with extreme low margin error.
- The ball bearing and linear for highly precision cut during operation can assure the silence of working plate movement.
- The entire electronic engineering is controlled by PLC; the movement of computer controlled working platform is activated by serve motor.
- Laser cutting device for the functions of bearing and alignment assures the fast precision cut.
- The hydraulic systems equipped with the radiator assure the stability of oil pressure and the precision cut.
- The electronic control panel with 8 inch TFT color screen allows for free size setting to increase cutting capacity.
Model VNR-D3200 VNR-D3600 Useful cutting length
(As double knife machine shear)3200mm 3600mm Useful cutting length
(As single knife machine shear)3200mm 3600mm Cutting thickness 90mm 90mm Presser width 550mm 550mm Min. width to be cut 20mm 20mm Max. width to be cut 530mm 530mm Total power installed 14.25 HP 14.25 HP Machine's weight 8500 kgs 9500 kgs
