Veneer Splicer, Guillotine, Planer
VNR-2200CD / VNR-2610CD

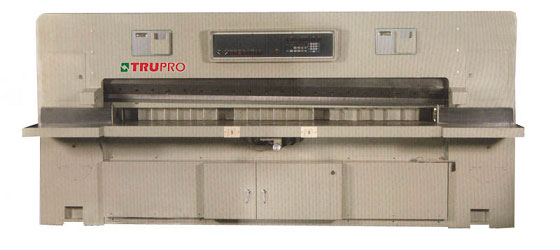

Single Knife Veneer Cutting Machine
FEATURES:
- Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust construction ensures stable operation and exactly cut off.
- Cutting operation by warm wheel shaft. Cutting knife is driven by worm gear; providing excellent cutting accuracy.
- Specially designed powerful electromagnetic clutch avoids unwanted second-time knife cutting.
- 2000-point memory allows for free size-setting to increase cutting capacity.
- Special sizes and new-system sizes can be keyed-induring operation, convenient for the cutting of all kinds of material.
- New cutting size can be added to memory without changing the entire program.
- Hydraulic operation assures quiet cutting.
- Suitable for cutting paper, card, board, rubber, cork, veneer, leather and plastic foils.
Model VNR-2200CD VNR-2610CD Cutting thickness 130 mm 110 mm Cutting width 2200 mm 2610 mm Cutting length 1200 mm 800 mm Cutting motor 7.5 HP 5 HP Hydraulic pump 3 HP 3 HP Feed motor 1 HP 1 HP Machine weight 5500 kgs 5500 kgs
