Wide Belt Sander

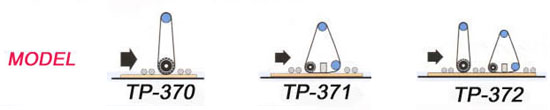

TP-370 / TP-371/ TP-372
36 (910mm) Standard Duty Wide Belt Sander
Model TP-370 TP-371 TP-372 Working width 910mm 910mm 910mm Working height 100mm 125mm 125mm Main motor standard 20HP 15HP 20, 15HP Feed motor 2HP 2HP 2HP Table hoist motor 1/2HP 1/2HP 1/2HP Feed speeds (variable) 4-16 M/min 4-16 M/min 4-16 M/min Sanding belt size 37" x 60" 37" x 60" 37" x 60" Compressed air required 5 kg/cm2 5 kg/cm2 5 kg/cm2 Exhaust volume requirement 3090 M3/Hr 3090 M3/Hr 3500 M3/Hr Net weight 900kg 900kg 1500kg Gross weight 1150kg 1150kg 1800kg Dimensions (L x W x H) 64" x 53" x 73" 64" x 53" x 73" 74" x 64" x 70" Packing size (L x W x H) 67" x 56" x 78" 67" x 55" x 78" 78" x 67" x 76"
