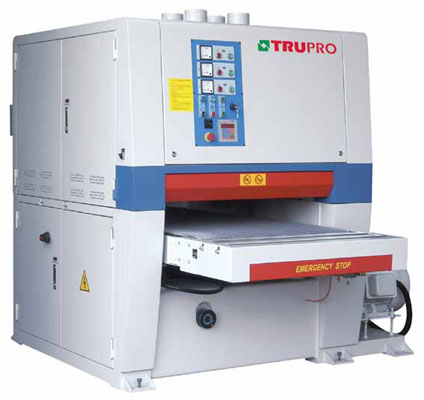

Wide Belt Sander

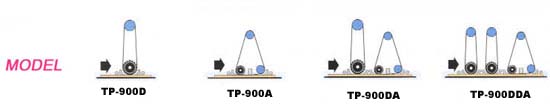

Model
TP-900D
TP-900A
TP-900DA
TP-900DDA
Working width
910mm
910mm
910mm
910mm
Working height
125mm
125mm
125mm
125mm
Main motor standard
20HP
15HP
25, 20HP
25, 20, 20mm
Feed motor
2HP
2HP
3HP
3HP
Table hoist motor
1/2HP
1/2HP
1/2HP
1/2HP
Feed speeds (variable)
6-26 M/min
6-26 M/min
6-26 M/min
6-26 M/min
Sanding belt size
37" x 75"
37" x 75"
37" x 75"
37" x 75"
Compressed air required
5 kg/cm2
5 kg/cm2
6 kg/cm2
6 kg/cm2
Exhaust volume requirement
1720 M3/Hr
1720 M3/Hr
3500 M3/Hr
5180 M3/Hr
Net weight
1440kg
1440kg
2800kg
3800kg
Gross weight
1850kg
1850kg
3250kg
4300kg
Dimensions (L x W x H)
65" x 60" x 81"
65" x 60" x 81"
83" x 81" x 81"
100" x 84" x 81"
Packing size (L x W x H)
68" x 62" x 87"
68" x 62" x 87"
86" x 85" x 85"
103" x 86 " x 85"
