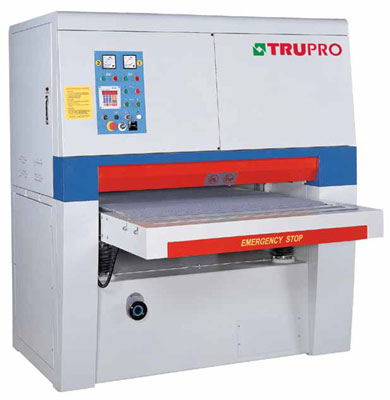

Wide Belt Sander

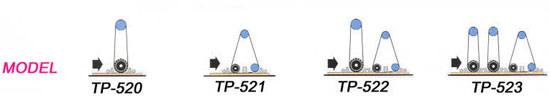

TP-520 / TP-521 / TP-522 / TP-523
52" (1270mm) Standard Duty Wide Belt Sander
Model TP-520 TP-521 TP-522 TP-523 Working width 1270mm 1270mm 1270mm 1270mm Working height 125mm 125mm 150mm 150mm Main motor standard 30HP 25HP 20, 20HP 30, 25, 20mm Feed motor 3HP 3HP 3HP 7.5HP Table hoist motor 1/2HP 1/2HP 1/2HP 1HP Feed speeds (variable) 4-16 M/min 4-16 M/min 4-16 M/min 6-26 M/min Sanding belt size 52" x 75" 52" x 75" 52" x 75" 52" x 75" Compressed air required 5 kg/cm2 5 kg/cm2 5 kg/cm2 6 kg/cm2 Exhaust volume requirement 3500 M3/Hr 3500 M3/Hr 6860 M3/Hr 9870 M3/Hr Net weight 1800kg 1800kg 2500kg 4500kg Gross weight 2050kg 2050kg 2850kg 4900kg Dimensions (L x W x H) 75" x 70" x 76" 75" x 70" x 76" 76" x 82" x 77" 94" x 104" x 76" Packing size (L x W x H) 81" x 76" x 83" 81" x 76" x 83" 80" x 73" x 85" 109" x 89" x 89"
