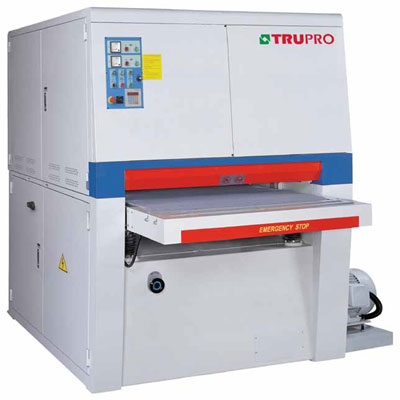

Wide Belt Sander

TP-600D / TP-600A / TP-600DA / TP-600DDA
24" (610mm) Heavy Duty Wide Belt Sander

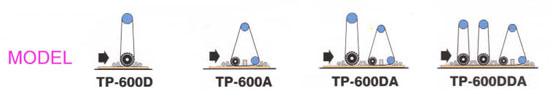

  • Model TP-600D TP-600A TP-600DA TP-600DDA
    Working width 610mm 610mm 610mm 610mm
    Working height 125mm 125mm 125mm 125mm
    Main motor standard 15HP 15HP 20, 15HP 20, 20, 15mm
    Feed motor 2HP 2HP 2HP 3HP
    Table hoist motor 1/2HP 1/2HP 1/2HP 1/2HP
    Feed speeds (variable) 6-26 M/min 6-26 M/min 6-26 M/min 6-26 M/min
    Sanding belt size 25" x 75" 25" x 75" 25" x 75" 25" x 75"
    Compressed air required 5 kg/cm2 5 kg/cm2 6 kg/cm2 6 kg/cm2
    Exhaust volume requirement 1030 M3/Hr 1030 M3/Hr 2064 M3/Hr 3500 M3/Hr
    Net weight 1200kg 1200kg 2000kg 2800kg
    Gross weight 1500kg 1500kg 2400kg 3150kg
    Dimensions (L x W x H) 62" x 56" x 81" 62" x 56" x 81" 79" x 70" x 81" 100" x 70" x 80"
    Packing size (L x W x H) 65" x 59" x 85" 65" x 59" x 85" 82" x 73" x 84" 103" x 73 " x 86"
