Pallet Truck

PT-III
Hand Pallet Truck

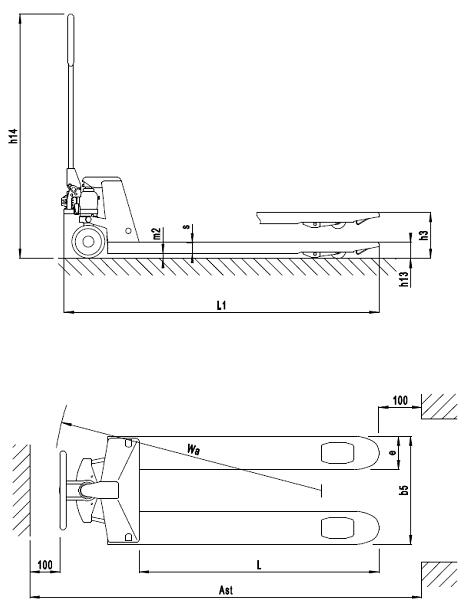

  • proimg/DF-3-1.jpg

  • Model

    PT-III

    Load capacity/rated load

    2000 kgs / 2500kgs

    Weight

    55-60kgs

    Lowered fork height (H13)

    75/85 mm

    Steering wheel

    Ø 160/180 mm

    Fork wheel

    Single-Ø 70×80mm

    (Double-Ø 70×60mm)

    Max. lift height

    190/200 mm

    Total height (H14)

    1176.5/1186.5 mm

    Overall length

    1520/1590mm

    Fork size

    53×150×1150 / 1220 mm

    Width overall forks

    380/480/450/520/550/680 mm

    Ground clearance, centre of wheel base

    22/32 mm

    Turning radius

    1265 / 1335 mm

    Aisle width for pallets 1000x1200 crossways

    1720 / 1790mm

    Aisle width for pallet 800x1200 crossway

    1770/1790mm
