Easy operation
Electric F/R control lever
The forward/reverse lever offers easily accessible fingertip control. It is easy to reach and also for fast and easy directional changes. Using the electric solenoid to control F/R is also improved flexibility of operation.
Light lever
The lever is integrated into the electric F/R lever. It is combination of light switch and turn signal.

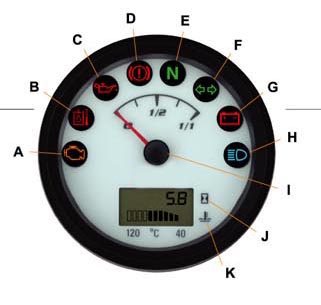

New Multifunctional Cobo Instrument Panel
A large and easy to see multifunctional display is perfectly centrally located in front of the eye of the operator. This new multifunctional panel provides all information necessary for the operator and service maintenance.
Parking brake lever with inter-lock
The lever is released by click the top button pressed and further improves safety.
.jpg)

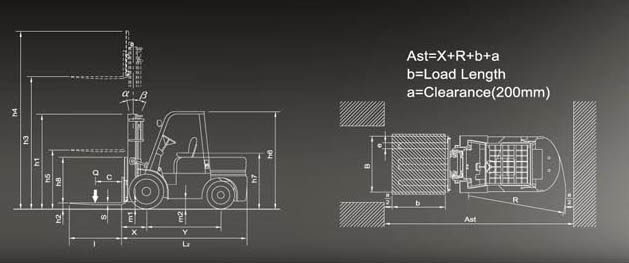

Specifications: (D: Diesel G: Gasoline)
Model
FL-15D/18D
FL
FL-20D/25D
FL
FL-30D/35D
FL
FL-40D/45D/50D
FL
Capacity
Kg
1500/1800
2000/2500
3000/3500
4000/4500/5000
Load center
mm
500
500
500
600
Control type
Sit
Sit
Sit
Sit
Total width
B
mm
1065
1158/1532
1290/1655
1450/1680
Lift
h3
3000
3000
3000
3000
Height mast lowered
h1
mm
2000
2000
2000
2190
Height mast extened
h4
mm
4220
4220
4220
4220
Length to face of forks
L2
mm
2235/2280
2460/2505
2600/2860
3110/3160/3310
Overhead guard height
h6
mm
2070
2110
2140
2290
Tires
S=solid P=Pneu.
F/R
P/P
P/P
P/P
P/P
Number(front/rear, X driven)
2/2
2/2
2/2
2/2
size
Front
AA
6.
7.
8.15-15-12P.R.
300-15-20P.R.

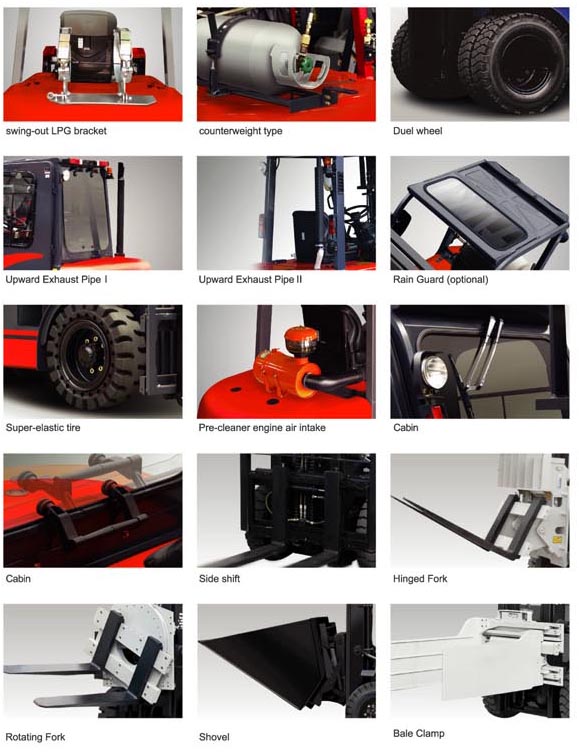

Optional:
