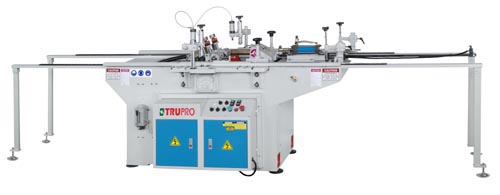

Louver Making Equipment

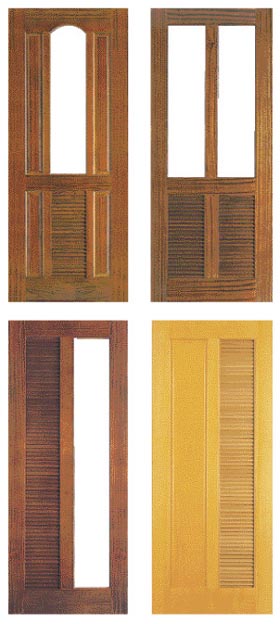

l For doing #2 & #4 pattern, it required special adjustment and mold to have it done at extra cost involves
Model
LOU-110
Slot per minute on 2 working pieces
20
Adjustable slot
0~90°
Max. depth of the slot
30 mm
Max. size of the working piece
100×130 mm
Min. size of the working piece
10×30 mm
Bits rotation
12000rpm
Bits motor power
5 HP
Sliding motor
1 HP
Machine size
4000×1140×1200 mm
N.W./G.W.
890/1050 kgs
Packing size
Packing mold
3000×100×40 mm
Packing machine
2100×1145×11400 mm
