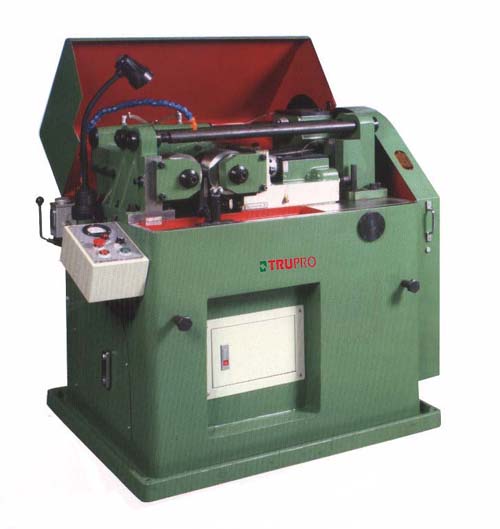

Thread Rolling Machine
Features:
l TR-20 and TR-35 adopt mechanical cam feed to complete rolling motion, and to ensure precise feed positioning.
l The precise worm shaft and worm gear: keep steady transmission, and the accuracy of thread profile.
l Precise transmission grinding type gear shape: noise free, durable, transmission operates precisely, and no extra space when transmission.
l Dove tail-type slide: assuring that jumping, vibration, and wear will not happen during rolling process.
l TR-3 adopts eccentricity feeding: featuring easy operation and smart design, suitable for small screws and knurling patterns.
l Designed for the thread rolling of standard screws, bicycle parts, automobile parts, small house hold electric appliances and various machinery parts.
Specifications:
Model
TR-35
Diameter range of threads rolled
Ø6~35
Range of pitch rolled
1.0~3.0P
Max. length of thread rolled
148 mm
Speeds of dies
40 rpm
Max. diameter
Ø148 mm
Bore of cylindrical dies
Ø54 mm keyway 10×5
Width of cylindrical dies
35, 70, 100, 150 mm
Max. min. center distance of die spindles
180~145 mm
Output (pcs/min)
6~24
Machine motor
7.5 HP
N.W.
1200 kgs
G.W.
1300 kgs
Overall dimensions
1500×1500×1500 mm
Hipping measurement
1400×980×1290 mm
