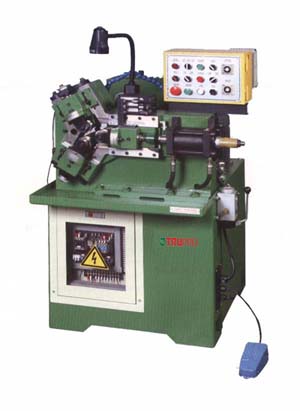

Thread Rolling Machine
Features:
l Specially designed for tubular processing. Equilateral triangle supports running to assure the roundness.
l Equilateral triangle supports rolling for improving roundness, concentricity and vertical degree.
l Driving by hydraulic unit: featuring in easy operation and powerful pressure.
l The transmission gear with grinding shape: featuring in noise-free, durable and precise transmission.
l Particularly applied to the tubular thread processing, such as oil connectors, bicycle, automobile and motor vehicle parts, radiating pipe etc.
Specifications:
Model
TR-3D
Diameter range of threads rolled
Ø9~40
Range of pitch rolled
0.5~2.5P
Max. length of thread rolled
In feed and thru feed both available
Speeds of dies
350, 600 rpm
Max. diameter
Ø78 mm
Bore of cylindrical dies
Ø25.4 mm keyway 1/4×1/8
Width of cylindrical dies
20, 40 mm
Max. min. center distance of die spindles
90~55 mm
Output (pcs/min)
4~25
Swiveling angle
±3°
Machine motor
2 HP
Hydraulic motor
2 HP
Max. rolling pressure
6 Tons
N.W.
540 kgs
G.W.
630 kgs
Overall dimensions
1300×1100×1500 mm
Hipping measurement
1180×1000×1500 mm
