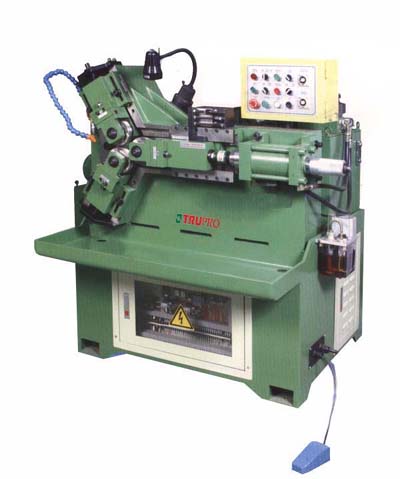

Thread Rolling Machine
Features:
l Specially designed for tubular processing. Equilateral triangle supports running to assure the roundness.
l Equilateral triangle supports rolling for improving roundness, concentricity and vertical degree.
l Driving by hydraulic unit: featuring in easy operation and powerful pressure.
l The transmission gear with grinding shape: featuring in noise-free, durable and precise transmission.
l Particularly applied to the tubular thread processing, such as oil connectors, bicycle, automobile and motor vehicle parts, radiating pipe etc.
Specifications:
Model
TR-3DX
Diameter range of threads rolled
Ø18~60
Range of pitch rolled
1.0~6.0P
Max. length of thread rolled
In feed and thru feed both available
Speeds of dies
220, 360, 560, 750 rpm
Max. diameter
Ø118 mm
Bore of cylindrical dies
Ø40 mm keyway 8×4
Width of cylindrical dies
25, 50 mm
Max. min. center distance of die spindles
190~105 mm
Output (pcs/min)
4~25
Swiveling angle
±3°
Machine motor
5 HP
Hydraulic motor
3 HP
Max. rolling pressure
12 Tons
N.W.
1300 kgs
G.W.
1450 kgs
Overall dimensions
1600×1500×1600 mm
Hipping measurement
1450×1400×1700 mm
