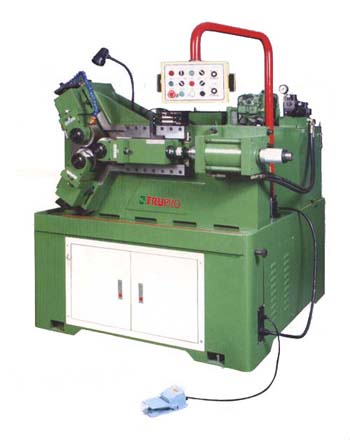

Thread Rolling Machine
Features:
l Specially designed for tubular processing. Equilateral triangle supports running to assure the roundness.
l Equilateral triangle supports rolling for improving roundness, concentricity and vertical degree.
l Driving by hydraulic unit: featuring in easy operation and powerful pressure.
l The transmission gear with grinding shape: featuring in noise-free, durable and precise transmission.
l Particularly applied to the tubular thread processing, such as oil connectors, bicycle, automobile and motor vehicle parts, radiating pipe etc.
Specifications:
Model
TR-3DL
Diameter range of threads rolled
Ø25~75
Range of pitch rolled
1.0~6.0P
Max. length of thread rolled
In feed and thru feed both available
Speeds of dies
170, 280, 440, 600 rpm
Max. diameter
Ø148 mm
Bore of cylindrical dies
Ø54 mm keyway 10×5
Width of cylindrical dies
35, 70, mm
Max. min. center distance of die spindles
240~50 mm
Output (pcs/min)
4~25
Swiveling angle
±3°
Machine motor
10 HP
Hydraulic motor
5 HP
Max. rolling pressure
17 Tons
N.W.
2420 kgs
G.W.
2570 kgs
Overall dimensions
2000×1800×2200 mm
Hipping measurement
1900×1600×2100 mm
