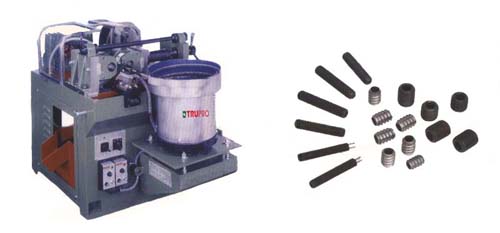

Thread Rolling Machine
Features:
l Thread rolling machine is setting with the vibration bowel. The working pieces are feeding to the between of two rolling dies, after the thread rolling process, the working pieces are automatically loading off from the thread rolling die.
Specifications:
Model
TR-3S-Setscrew
Diameter range of threads rolled
Ø2~8
Range of pitch rolled
0.4~1.25P
Max. length of thread rolled
thru feed
Speeds of dies
35 rpm
Max. diameter
Ø98 mm
Bore of cylindrical dies
Ø50.5 mm keyway 8×4
Width of cylindrical dies
30, 40 mm
Max. min. center distance of die spindles
120~85 mm
Output (pcs/min)
8~30
Swiveling angle
±6°
Machine motor
2 HP
N.W.
540 kgs
G.W.
620 kgs
Overall dimensions
700×1170×1000 mm
Hipping measurement
1330×1050×1050 mm
